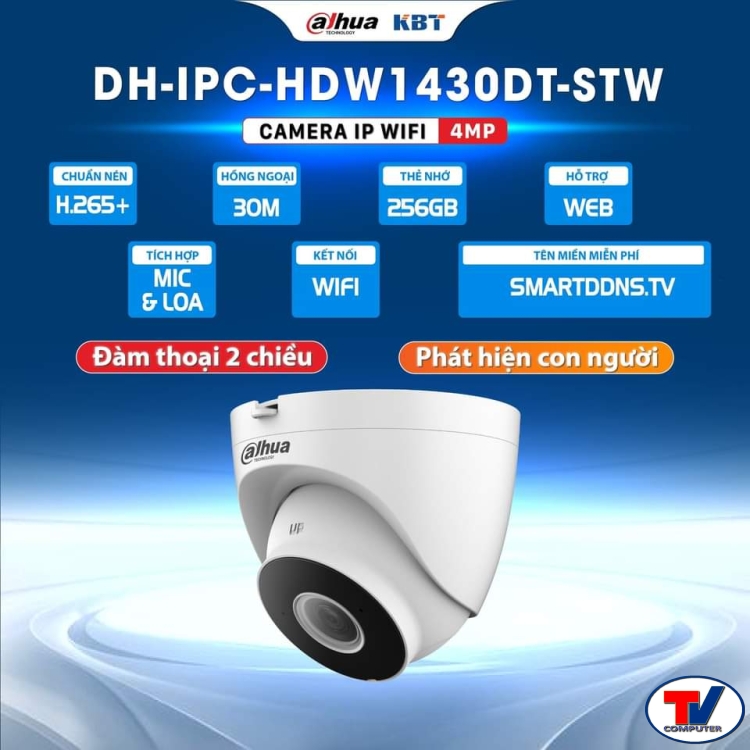

CAMERA IP DAHUA DUM 4MP - IPC-HDW1430DT-STW

• 4.0MP Eyeball WIFI Camera cảm biến CMOS kích thước 1/3”
• Chuẩn nén H265+, 25/30fps@1080P
• Tầm xa hồng ngoại 30m với công nghệ hồng ngoại thông minh
• Chế độ ngày đêm (ICR), Chống ngược sáng DWDR, chống ngược sáng(BLC), chống nhiễu (3D-DNR).
• Hỗ trợ chức năng phát hiện thông minh: Phát hiện chuyển động, , video tampering, scene changing, audio detection, no SD card, SD card full, SD card error, network disconnection, IP conflict, illegal access.
• Hỗ trợ khe cắm thẻ nhớ 128GB
• Chuẩn chống nước IP67.
• Điện áp DC12V



Image Sensor

1/3" CMOS

Max. Resolution

2560 (H) × 1440 (V)

ROM

16 MB

RAM

64 MB

Scanning System

Progressive

Electronic Shutter Speed

Auto/Manual 1/3 s–1/100,000 s

Min. Illumination

0.03 Lux@F2.0 (Color, 30 IRE)

0.003 Lux@F2.0 (B/W, 30 IRE)

0 lux (Illuminator on)

S/N Ratio

> 56 dB

Illumination Distance

30 m (98.43 ft)

Illuminator On/Off Control

Auto; Manual

Illuminator Number

1 (IR LED)

Pan/Tilt/Rotation Range

Pan: 0°–360°
Tilt: 0°–78°
Rotation: 0°–360°

Lens

Lens Type

Fixed-focal

Lens Mount

M12

Focal Length

2.8 mm; 3.6 mm

Max. Aperture

F2.0

Field of View

2.8 mm:

Horizontal: 90°; Vertical: 50°; Diagonal: 107°

3.6 mm:

Horizontal: 76°; Vertical: 40°; Diagonal: 92°

Iris Control

Fixed

Close Focus Distance

2.8 mm: 1.0 m (3.28 ft)
3.6 mm: 1.4 m (4.59 ft)

DORI Distance

Lens

Detect

Observe

Recognize

Identify

2.8 mm

68.0 m (223.10 ft)

27.2 m

(89.24 ft)

13.6 m

(44.62 ft)

6.8 m

(22.31 ft)

3.6 mm

85.2 m (279.53 ft)

34.1 m

(111.88 ft)

17.0 m

(55.77 ft)

8.5 m

(27.89 ft)

Video

Video Compression

H.264B; H.264; H.264H; H.265

Smart Codec

Smart H.265+; Smart H.264+

Video Frame Rate

Main stream:
2560 × 1440 (1–20 fps)
Sub stream:
704 × 576 (1–25 fps)
704 × 480 (1–30 fps)
*The values above are the max. frame rates of each stream; for multiple streams, the values will be subjected to the total encoding capacity.

Stream Capability

2 streams

Resolution

2560 × 1440 (2560 × 1440); 2304 × 1296 (2304 × 1296); 1080p (1920 × 1080); 1.3M(1280 × 960); 720p (1280 × 720)

Bit Rate Control

CBR/VBR

Video Bit Rate

H264: 24 kbps–4096 kbps

H265: 9 kbps–4096 kbps

Day/Night

Auto (ICR)/Color/B/W

BLC

Yes

WDR

DWDR

White Balance

Auto; natural; street lamp; outdoor; manual; regional custom

Gain Control

Auto

Noise Reduction

3D NR

Motion Detection

OFF/ON (4 areas, rectangular)

Smart Illumination

Yes

Image Rotation

0°/180°

Mirror

Yes

Audio

Built-in MIC

Yes

Built-in Speaker

Yes

Audio Compression

G.711a; G.711Mu

Alarm

Alarm Event

No SD card; SD card full; SD card error; network disconnection; IP conflict; illegal access; motion detection; video tampering; audio detection; intensity change; SMD (human)

Network

Network Port

RJ-45 (10/100 Base-T)

Wi-Fi

IEEE802.11b/g/n 2.4–2.4835 GHz; 2.4 G

Wireless Range

Up to 120 m (The performance varies based on

actual environment)

SDK and API

Yes

Cyber Security

Video encryption; configuration encryption; Digest; WSSE; account lockout; security logs; generation and importing of X.509 certification; HTTPS; trusted boot; trusted execution; trusted upgrade

Network Protocol

IPv4; HTTP; TCP; UDP; ARP; RTP; RTSP; RTCP; DHCP; DNS; NTP; Multicast; RTMP

Interoperability

ONVIF (Profile S/Profile T); CGI; P2P

User/Host

6 (Total bandwidth: 36 M)

Storage

Micro SD card (support max. 256 GB)

Browser

IE
Chrome
Firefox

Management Software

Smart PSS; DSS; DMSS

Mobile Client

iOS; Android

Certification

Certifications

CE-LVD:EN62368-1;

CE-EMC:Electromagnetic Compatibility Directive 2014/30/EU;

CE-RED:Radio Equipment Directive 2014/53/EU;

FCC:47 CFR FCC Part 15, Subpart B;

FCC ID:FCC PART 15C

Power

Power Supply

12 VDC

Power Consumption

Basic: 2 W (12 VDC)

Max. (H.265 + IR intensity): 6.1 W (12 VDC)

Environment

Operating Temperature

–30 °C to +60 °C (–22 °F to +140 °F)

Operating Humidity

≤ 95%

Storage Temperature

–30 °C to +60 °C (–22 °F to +140 °F)

Protection

IP67

Structure

Casing

Inner core: Metal + Plastic

Cover: Plastic

Product Dimensions

Ø109.9 mm × 102.2 mm (Ø4.33" × 4.02")

Net Weight

352 g (0.77 lb)

Gross Weight

530 g (1.17 lb)
  • 570.000đ
  • 241

Bảo hành 12 tháng
